目标检测数据集分析
现在支持导出excel数据,可以使用自己喜欢的软件生成图像了。
# 目标检测数据集分析
平时我们经常需要对我们的数据集进行各种分析,以便我们找到更好的提高方式。所以我将我平时分析数据集的一些方法打包发布在了Github上,分享给大家,有什么错误和意见,请多多指教!
项目地址 (opens new window)
# 图片数量、标注框数量、类别信息
这些信息会在终端打印出来,格式如下:
Processing, please wait...
============ Errors ============
Annotations\helmet_10551.xml Image has wrong height and width.
============ Errors ============
***************** Info *****************
number of images: 43677
number of boxes: 62239
classes = ['unwear', 'wearing']
***************** Info *****************
Processing completed. The result is saved in out.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

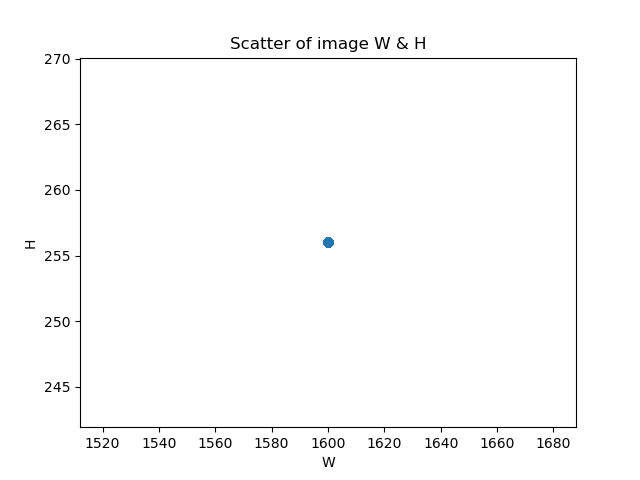

# 所有图片宽度和高度的散点图
这里只有一个点,是因为所有的图片尺寸相同
# 所有标注框宽度和高度的散点图

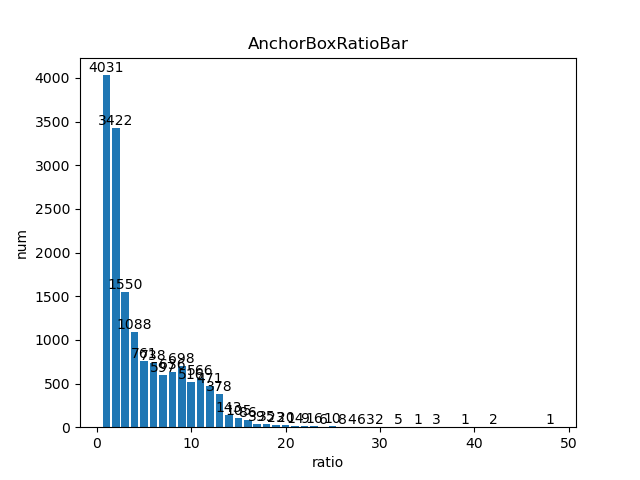

# 标注框宽度和高度之比
横坐标为比率,纵坐标为数量

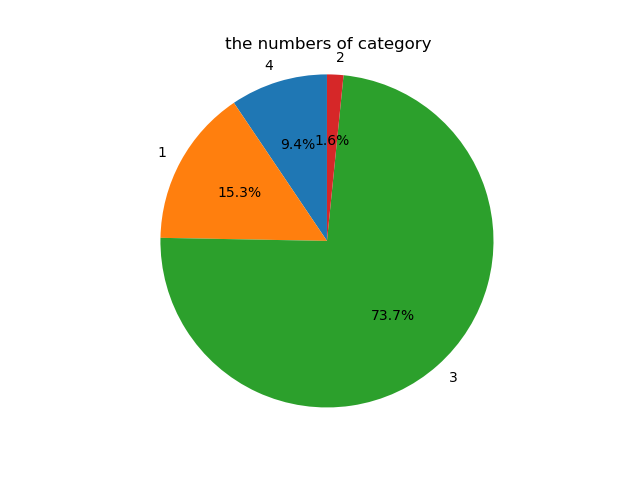

# 每一类的标注框数量

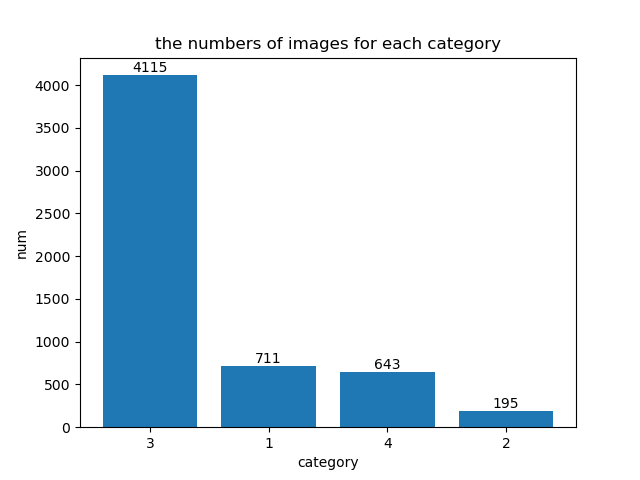

# 每一类图片数量
# 每一张图片上的标注框数量
横坐标为一张图片上的标注框数量,纵坐标为图片数量
# 不同尺寸的图片数量
根据coco的划分规则计算

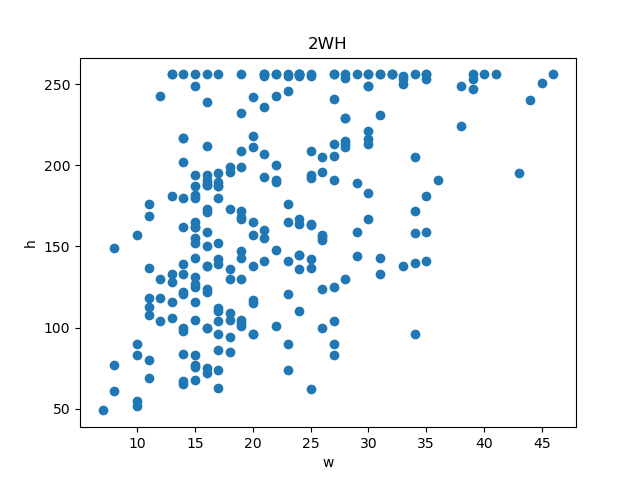

# 每一类标注框的宽度高度散点图
# 使用方法
# Install
git clone https://github.com/Shanyaliux/DataAnalyze.git
cd DataAnalyze
pip install -r requirements.txt
1
2
3
2
3
# Usage
python analyze.py ${type} ${path} [--out ${out}]
1
type
The format of the dataset, optional 'coco' or 'voc'.path
The path of dataset. Iftype
is 'coco', thepath
is the json file path. Iftype
is 'voc', thepath
is the path of the xml file directory.--out
is the output directory, default is './out'
# Example
python analyze.py coco ./tarin.json --out ./out/
1
python analyze.py voc ./xml/ --out ./out/
1
